| 2 | 214-7880 | Seal GP-Duo-Cone | 1 |
| 214-7879 | Ring-Toric | 2 |
| 3 | 163-1657 | Cup-Special Tapered | 2 |
| 4 | 163-1656 | Cone-Special Tapered | 2 |
| 5 | 8C-3411 | Bolt(M30X3.5X90-MM) | 10 |
| M |
|
|
| 6 | 136-2926 | Gear-Planetary(22-TEETH) | 4 |
| 7 | 136-2923 | Gear-Sun(20-TEETH) | 1 |
| 8 | 7Y-1469 | Coupling | 1 |
| 9 | 136-2944 | Spacer(61X95.1X10-MM Thk) | 2 |
| 10 | 136-2948 | Pin-Dowel | 6 |
| 11 | 199-4728 | Housing(Sprocket) | 1 |
| 12 | 136-2959 | Shim(0.3-MM Thk) | 1 |
| 17 | 136-2949 | Gear-Coupling(83-TEETH) | 1 |
| 18 | 136-2967 | Seal-O-Ring | 1 |
19 | 136-2947 | Carrier-Planetary | 1 |
| 20 | 136-2945 | Spacer(203X233X8.5-MM Thk) | 1 |
| 21 | 7Y-0667 | Ring-Retaining | 1 |
22 | 136-2930 | Carrier-Planetary | 1 |
23 | 136-2922 | Gear-Sun(19-TEETH) | 1 |
24 | 136-2927 | Gear-Ring(86-TEETH) | 1 |
25 | 7M-8485 | Seal-O-Ring | 2 |
| Alternate |
|
|
26 | 3E-2338 | Plug-Pipe(Final Drive, Oil Drain, Fill) | 2 |
27 | 136-2934 | Carrier AS | 1 |
27A | 136-2931 | Shaft-Planetary | 3 |
28 | 136-2943 | Ring-Retaining | 1 |

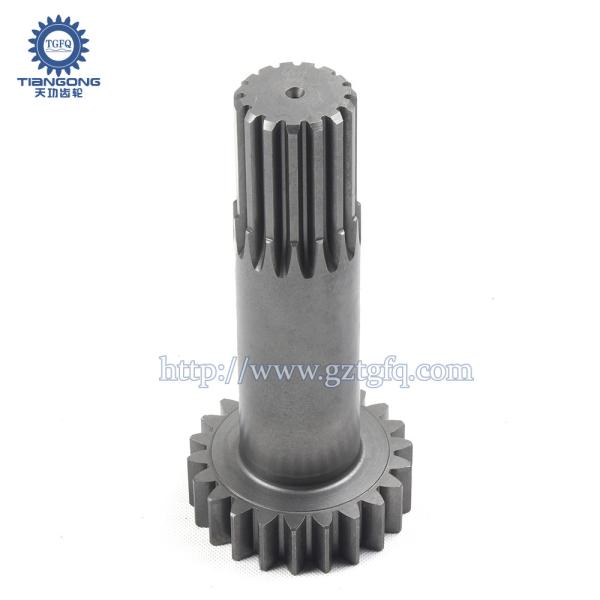

29 | 136-2921 | Gear-Sun(22-TEETH) | 1 |
30 | 7Y-1493 | Spacer(8.7X50X14-MM Thk) | 1 |
31 | 7Y-0808 | Shim(1.6-MM Thk) | 1 |
| B |
|
|
32 | 136-2946 | Bearing-Caged | 3 |
33 | 8T-4240 | Ring-Retaining | 3 |
34 | 094-0584 | Washer(40.3X72X1-MM Thk) | 6 |
35 | 136-2924 | Gear-Planetary(31-TEETH) | 3 |
36 | 8T-3957 | Bolt-Socket Head(M12X1.75X30-MM) | 12 |
| M |
|
|
37 | 136-2920 | Cover | 1 |
38 | 136-2932 | Shaft-Planetary | 3 |
39 | 453-4193 | Bolt(M30X3.5X260-MM) | 18 |
| M |
|
|
40 | 451-2178 | Washer-Hard(33X56X6-MM Thk) | 18 |
41 | 136-2925 | Gear-Planetary(23-TEETH) | 3 |
42 | 1U-8846 | Sealant-Gasket |
|
| B |
|
|
43 | 136-2928 | Gear-Ring(68-TEETH) | 1 |
44 | 7Y-0912 | Bearing AS-Roller | 11 |
45 | 4I-7576 | Washer(66.3X104X3-MM Thk) | 14 |
46 | 099-5194 | Pin-Spring | 7 |
47 | 136-2933 | Shaft-Planetary | 4 |
About
US............................................................................................................................................
Exhibition
Show......................................................................................
Product Description:
Product Summary:
The Excavator Swing Drive for EC950E is a crucial component for
excavators that ensures smooth and efficient operation. This
excavator travel reducer is designed specifically for the EC950E
model, with parts numbers VOE14712083 VOE14666239 . It plays a
vital role in the excavator travel reduction process, providing the
necessary power and torque for the machine to move effectively.
Constructed with high-quality materials, this excavator travel
gearbox part is built to withstand the rigors of heavy-duty
excavating tasks. The inner packing of theSwing drive is done
meticulously, ensuring that it is wrapped with shrink film for
added protection during transportation and storage.
Whether you are involved in construction, mining, or any other
industry that requires the use of excavators, having a
reliableSwing drive is essential. The EC950E ExcavatorSwing Drive
offers durability, efficiency, and high performance, making it a
valuable investment for your equipment.
Packing and Shipping:
Product: ExcavatorSwing Drive
Description: High-qualitySwing drive for excavators, designed for
durability and performance.
Packaging: The ExcavatorSwing Drive will be securely packaged in a
sturdy cardboard box with foam padding to prevent any damage during
transit.
Shipping: We offer fast and reliable shipping services to ensure
your ExcavatorSwing Drive reaches you quickly and safely. Orders
are processed promptly and tracking information will be provided
for your convenience.
FAQ:
Q: What is the brand of the ExcavatorSwing Drive?
A: The brand is TGFQ.
Q: What is the model number of the ExcavatorSwing Drive?
A: The model number is DX150.
Q: What is the minimum order quantity for the ExcavatorSwing Drive?
A: The minimum order quantity is 1.
Q: What is the price of the ExcavatorSwing Drive?
A: The price is $835.
Q: What are the packaging details for the ExcavatorSwing Drive?
A: The packaging details include a Plywood Case.
Q: What is the delivery time for the ExcavatorSwing Drive?
A: The delivery time is 3 days.
Q: What are the payment terms for the ExcavatorSwing Drive?
A: The payment terms are TT (Telegraphic Transfer).
Q: What is the supply ability of the ExcavatorSwing Drive?
A: The supply ability is 20+ units.
